ALCK6180X3000
ALLES CNC

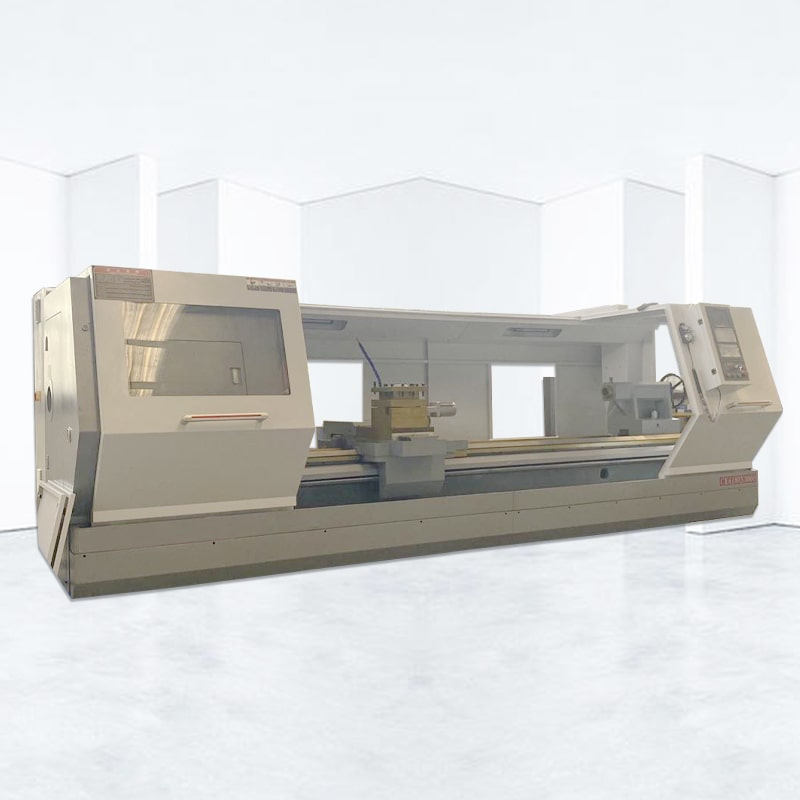

CNC Lathe ALCK6180X3000
1. Flat bed CNC lathe is an integral casting bed structure with reasonable internal steel plate layout and high rigidity. The equipment adopts high-frequency quenching, guide rail grinding process, stable machine tool, high precision, high rigidity and strong cutting force.
2.CNC lathe turning has high power, strong rigidity, and a wide range of spindle speed regulation, which is suitable for strong or high-speed cutting. The main shaft braking and gear shifting are hydraulically controlled, the braking is sensitive and reliable, and the button can be used to switch the speed without stopping. The forced lubrication cooperates with the pressure oil in the bedside table.
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180*3000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ450 | |
| Maximum processing length | mm | 3000 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ450 | |
| Spindle hole diameter | mm | Φ105 | |
| Spindle speed range | r/min | 300-835 | |
| Feed | X/Z axis travel | mm | 420/3000 |
| X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
| X/Z fast moving speed | m/min | 4/6 | |
| Number of stations | 4 | ||
| Tool specifications: turning/boring | mm | 32/40 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Motor | Spindle motor power | Q | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Q | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 6200 | |
| Machine size: length×width×height | mm | 5400/1900/2000 |
CNC Lathe ALCK6180X3000 shipping
The horizontal CNC lathe machine is designed for precision and maximum CNC performance with features only found on high end CNC lathes. A variety of tools are available to further increase the productivity of the machine. Scheduling tools, quick-change Tool holder and automatic indexing turrets maximize throughput in most situations. Heavy-duty cast iron machines are ideal.
The highly versatile automatic CNC lathe machine is designed for a wide range of turning applications: long shafts, bar stock, castings and large diameter panel machining after clearance removal.
