ALQK1327
ALLES CNC

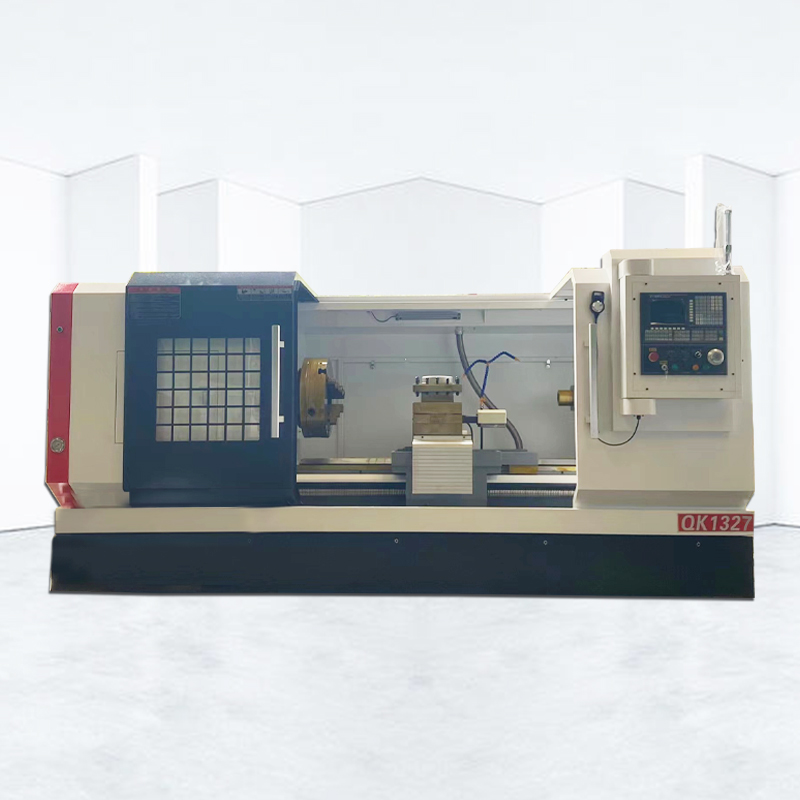

ALLES CNC CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | ALQK1327 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | Φ380 | ||
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ350 | |
| Spindle through hole diameter | mm | Φ270 | |
| tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 10/15 | |
| Others | battery capacity | KVA | 15 |
| Rail form | Hard rail (greater than HRC50) |
Please note that the bed length can be customized according to the actual needs of customers
1.ALLES CNC Big spindle bore and double chuck to ensure process big diameter pipe
2.CNC lathe machine One-piece bed adopts high strength iron to ensure rigidity and precision
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
4.CNC metal lathe Carriage and guide way contact surface use to maintain accuracy
ALLES CNC CNC pipe thread lathes are mainly designed for machining internal and external threads of pipes including metric, inch, modulus DP and taper threads, and have all the common functions of ordinary CNC lathes such as machining inner holes. and the end faces of the shaft and disc. The CNC lathe machine is widely used in petroleum exploration, mineral exploration, chemical pipeline, geological exploration and other industries. It is an efficient equipment for processing and repairing drill pipes, drill pipes and threaded joints.
ALLES CNC The automatic CNC lathe machine can turn metric, inch cylindrical, tapered pipe threads, and can also be used to replace external lathes, boring, internal and external cones, planes, etc. of lathes. Lathes are widely used in petroleum, gold manufacturing, chemical, Hydropower geological exploration and other industries. Other departments are responsible for the processing of drill pipes, drill ships and casing.
