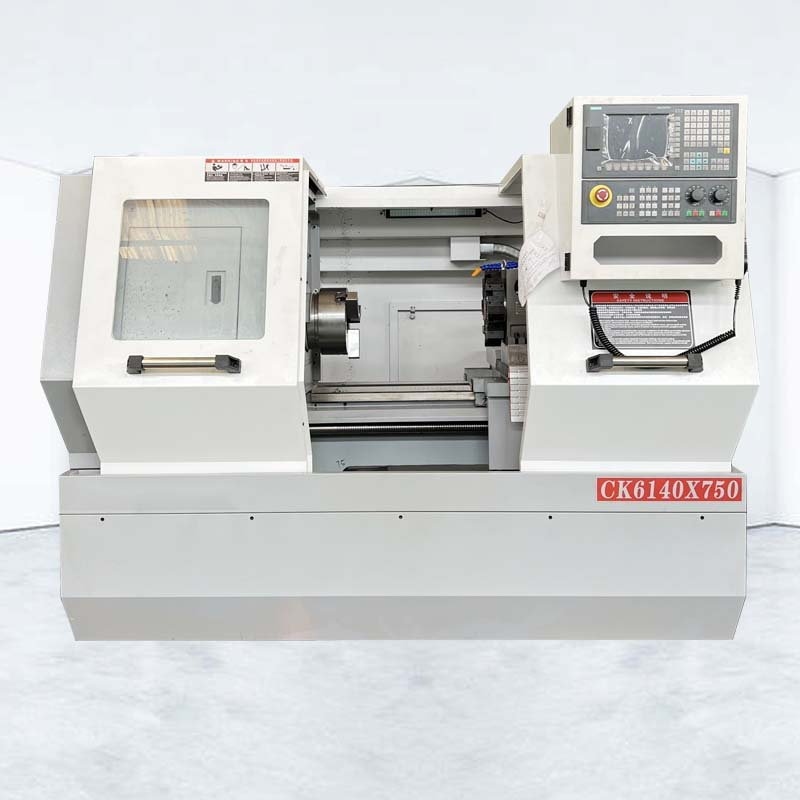

ALCK6140x750
ALLES CNC
CNC lathe is a high-precision, high-efficiency automatic CNC lathe. The CNC turning and milling compound machine equipped with multi-station turret or dynamic turret has a wide range of processing performance, and can process complex workpieces such as linear cylinders, inclined cylinders, arcs, and various threads, grooves, and worms.
ALLES CNC ALCK6140x750 CNC Lathe Inspection ALLES CNC lathes will be inspected before shipment before shipment.
1.Imported linear guide rail With automatic water pipe
With automatic oil pipe Servo motor
Row tool post/Electric turret
2.The lathe bed is made of casting. The wide lathe bed contain X-model stiffener, and it have went through at least
twice aging quality tests, so that the lathe has high Stiffness and it is extraordinarily stable.
3.High-precise angular contact ball bearings are used as bearing of the lathe. This gives a optimized combination
of high-precision, high bearing capacity, good running speed, and it is more durable.
4.The imported linear rolling guide way are used in X, Z axes, so that it can decrease abrasion of the lathe. The
preloading of the super-sized rolling guide-way decrease the gap of the guide way, and it increase the precision
mean while.
5.The design of the guarded guideway is more water-resistent and scrap-iron-resistent.
6.The lined cutter frame is the most accurate design, and it also have a high speed of cutter changing. It can save
a lot of process time for workers.
Equipment configuration and parameters
| Item | Unit | Parameter |
| Maximum turning diameter on the bed | mm | Φ400 |
| top distance | mm | 750 |
| Maximum turning diameter | mm | Φ400 |
| Maximum turning diameter on the skateboard | mm | φ220 |
| Spindle hole diameter | mm | Φ52 |
| Spindle speed range | rpm | 80-2200 |
| Spindle maximum output torque | Nm | 480 |
| Main motor output power | kw | 5.5 |
| Standard chuck | mm | φ200mm manual chuck |
| X-axis rapid traverse speed | m/min | 4(radius) |
| Z-axis rapid traverse speed | m/min | 8 |
| X-axis travel | mm | 220 |
| Z-axis travel | mm | 750 |
| Tailstock sleeve diameter | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Tailstock | Manual | |
| Cylindrical knife | mm | 20X20 |
| Boring bar diameter | mm | ф20 |
| Machine size | mm | 2250×1400×1500 |
| Machine weight | kg | 1500 |
High speed and precision are the eternal goals of cnc lathe 3 axis development. With the rapid development of science and technology, the speed of replacement of electromechanical products is accelerated, and the requirements for the precision and surface quality of parts processing are also higher and higher.
In order to meet the needs of this complex and changeable market, the current automatic cnc lathe is developing in the direction of high-speed cutting, dry cutting and quasi-dry cutting, and the machining accuracy is constantly improving.
