ALCK6140DX1000
ALLES CNC

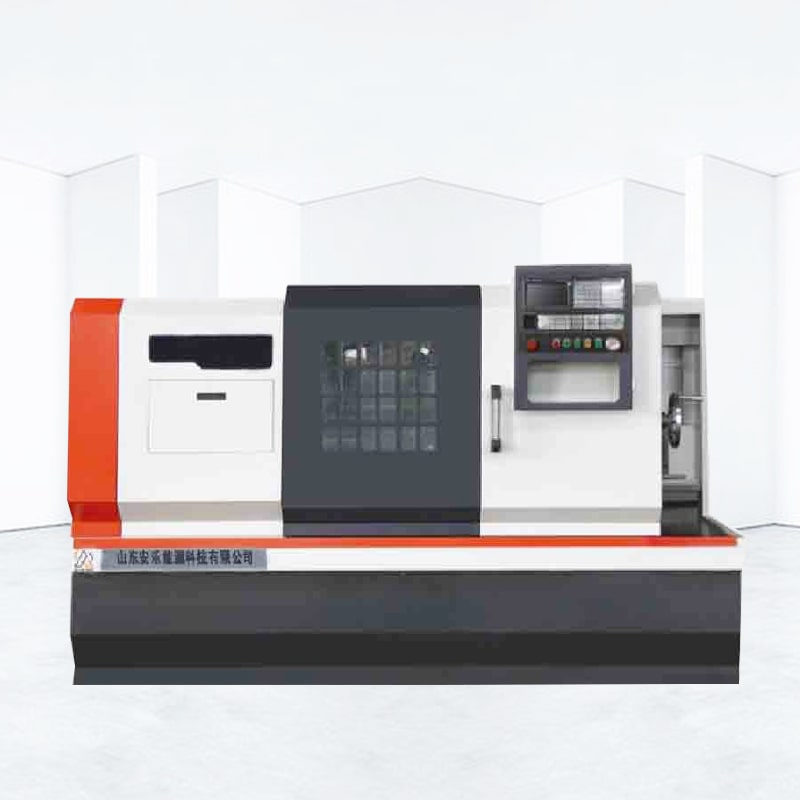

ALCK6140D Horizontal CNC lathe machine
1.CK6140Dx1000 China CNC lathe machines metal lathe cnc adaptable to various control system such as GSK, KND, Siemens, FANUC, etc.
2.Different appearance shapes such as square, circular arc and so on.
3.Optimized guide rail structure by double triangles.
4.Steel guide rail as optional.
5.Steady integral cast iron foot.
Device parameters
| Item | Unit | ALCK6140D/1000 |
| Maximum turning diameter of bed | mm | φ400 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum turning diameter of slide | mm | φ180 |
| Center Head Distance | mm | 1000 |
| Maximum turning length | mm | 850 |
| Spindle hole diameter | mm | φ52 |
| Bar diameter | mm | φ52 |
| With hollow chuck pull rod through hole | mm | φ38 |
| Diameter of tailstock sleeve | mm | φ65 |
| Tailstock sleeve stroke | mm | 140 |
| Tools in electric tool post | pcs | 4 |
| Knife square size | mm | □20×20(Four stations) |
| X/Z direction moving speed | m/min | 4/5 |
| X direction stroke | mm | 240 |
| Z direction stroke | mm | 1000 |
| Minimum Setting Unit | mm | 0.001 |
| Main motor power | KW | 5.5 |
| Total Electric Power | KW | 10 |
| Machine Weight | Kg | 1800 |
| Machine Size（L×W×H） | mm | 2600×1500×1650 |
ALCK6140D Hard guide way CNC lathe Work piece
CNC lathes are mainly used to process high-precision parts such as shafts, disk parts, shell parts, molds, etc. Its high processing performance and expandable performance make it widely used in the processing of various precision parts.
CNC lathe machine apply to automotive, motorcycle, electronics, aerospace, military and other industries on the body parts for efficient, high-volume, High precision machining.
