ALCK6136x750
ALLES CNC
Super low price ALCK6136X750

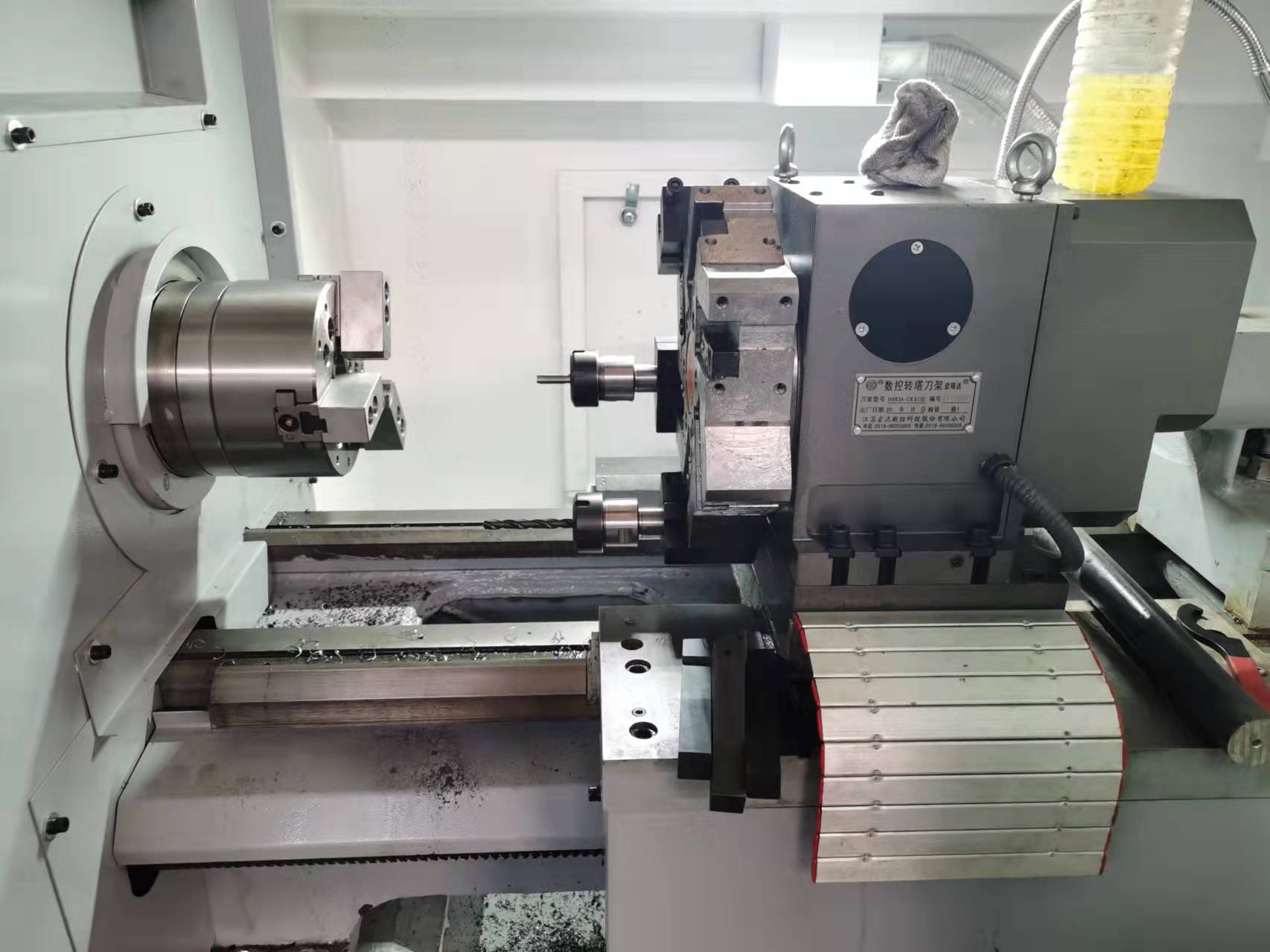

1. Full protective sheet metal design, beautiful and practical. The spindle pressure regulating gauge and the valve are located in front, which is easy to operate. Hollow sheet metal to reserve position and space for the installation of the manipulator.
2. The two ends of the flat bed CNC lathe screw are designed with double pre-tensioning to improve the precision and stability of the CNC lathe 3 axis.
Equipment configuration and parameters
| Item | Unit | ALCK6136-750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite): | r/min | 150-2000 |
| Spindle end model ISO (GB) | A2-6 | |
| Spindle motor power | kw | 5.5 |

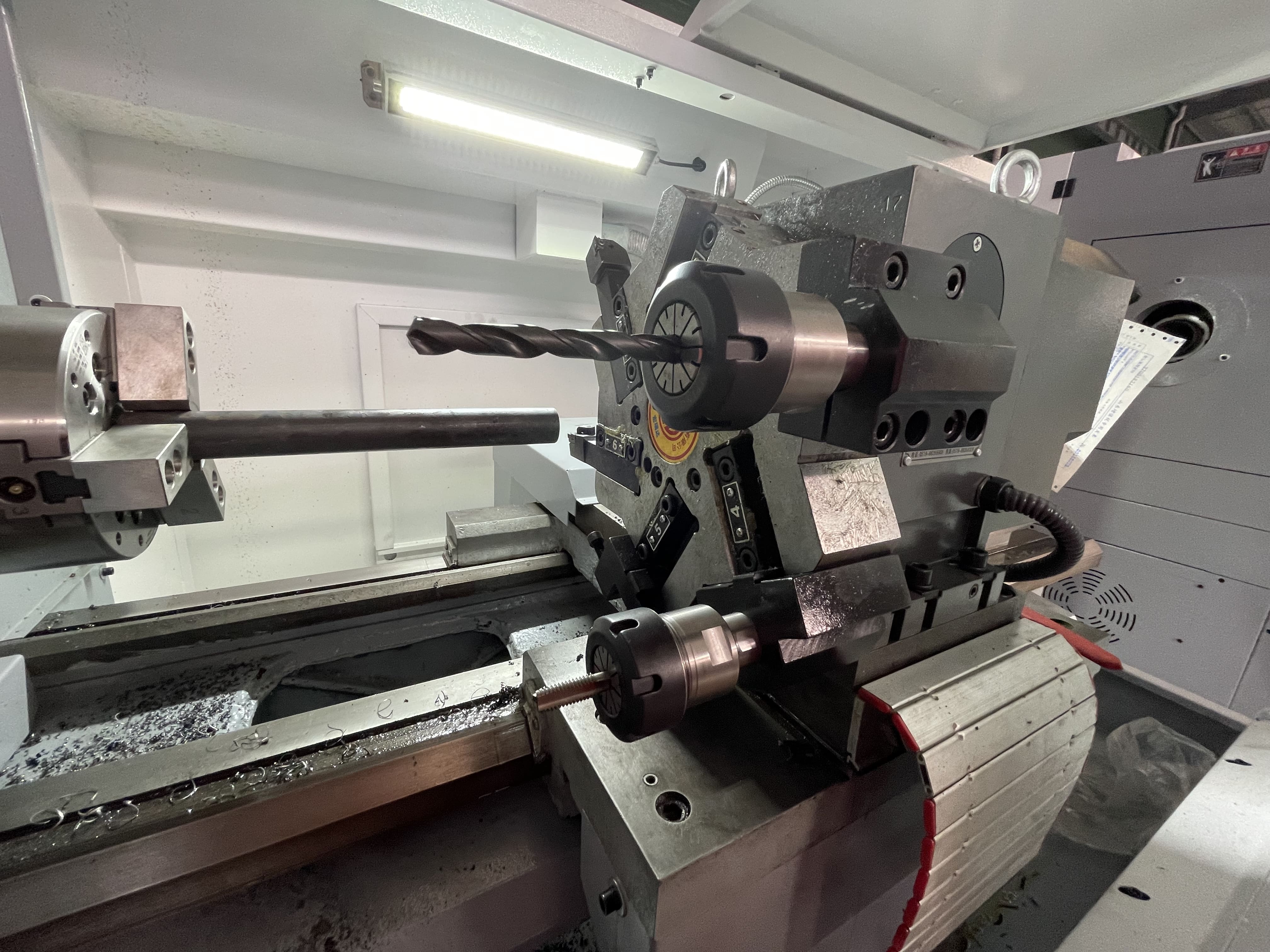

| CNC tool holder | Vertical four-station tool holder | |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
Super low price ALCK6136X750
Automatic CNC lathe machine rigidity and high efficiency.Its main components and structure have been optimized.It is the preferred equipment for machining shaft,disc,sleeve special surface and screw parts.
CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structures have been optimized design, and can process shafts, discs, sleeves, special-shaped surfaces and screw work pieces.
