ALTCK46A
ALLES CNC
slant bed CNC lathe higher efficiency and higher precision in bulk.

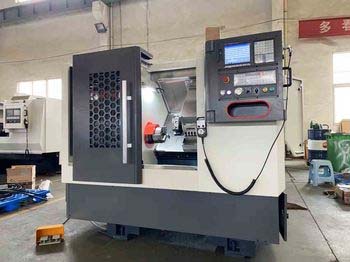

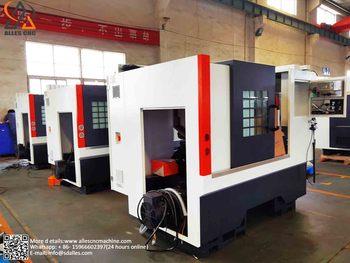

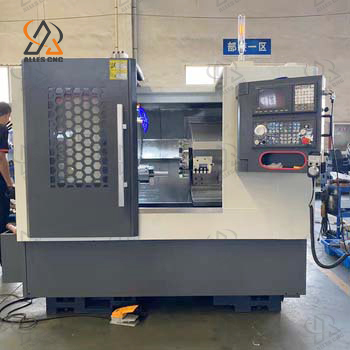

ALLES CNC Slant bed CNC lathe ALTCK46A with Y axis
1. Slant bed CNC lathe 45 degrees slant bed CNC lathe machine
2. CNC lathe Higher accuracy Taiwan linear guide
3.CNC lathe machine Chip conveying capacity is large and convenient, customer could choose
4. Automatic CNC lathe machine Chip conveying in the front or in the back
5.CNC lathe X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretch structure

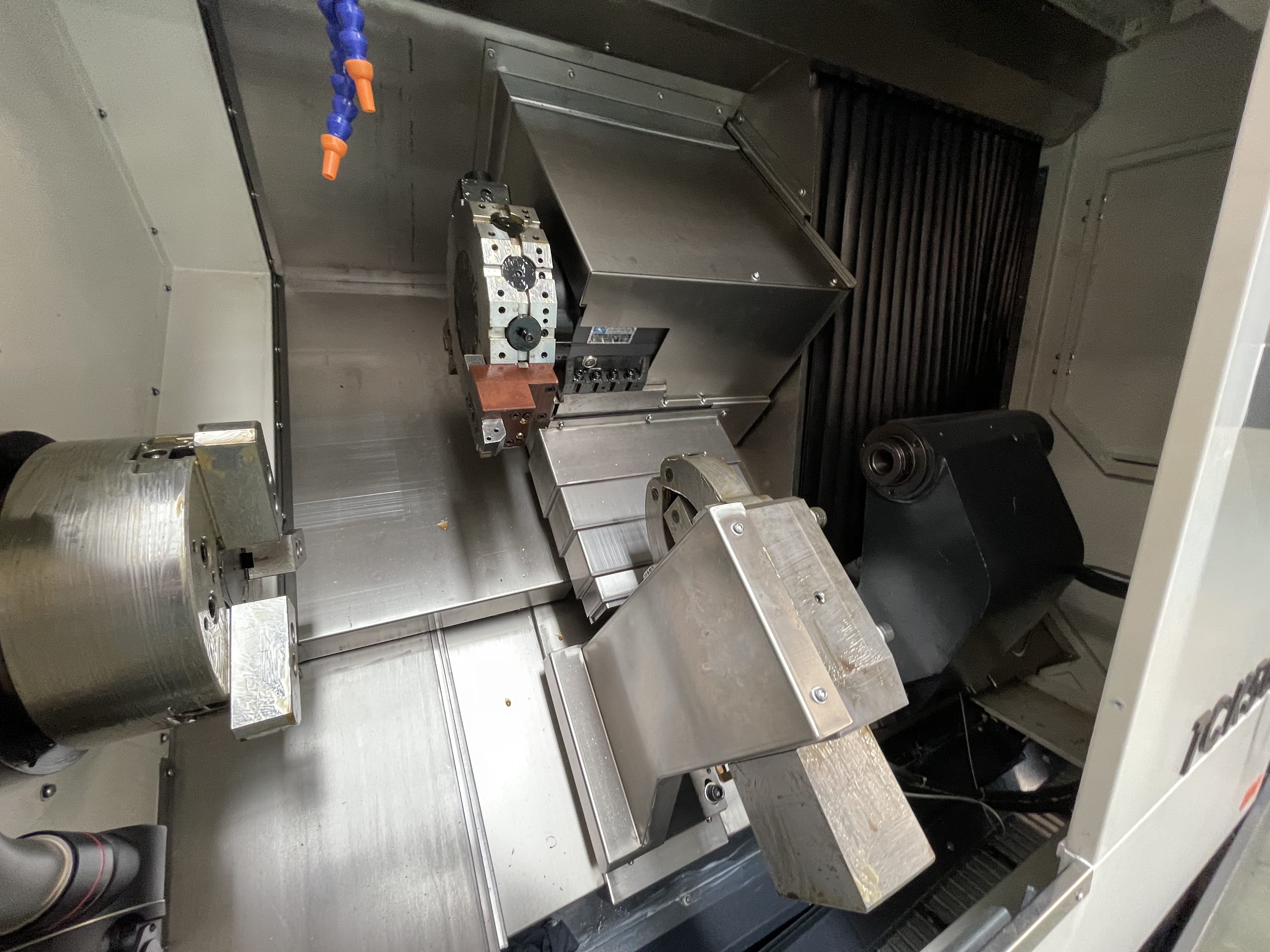

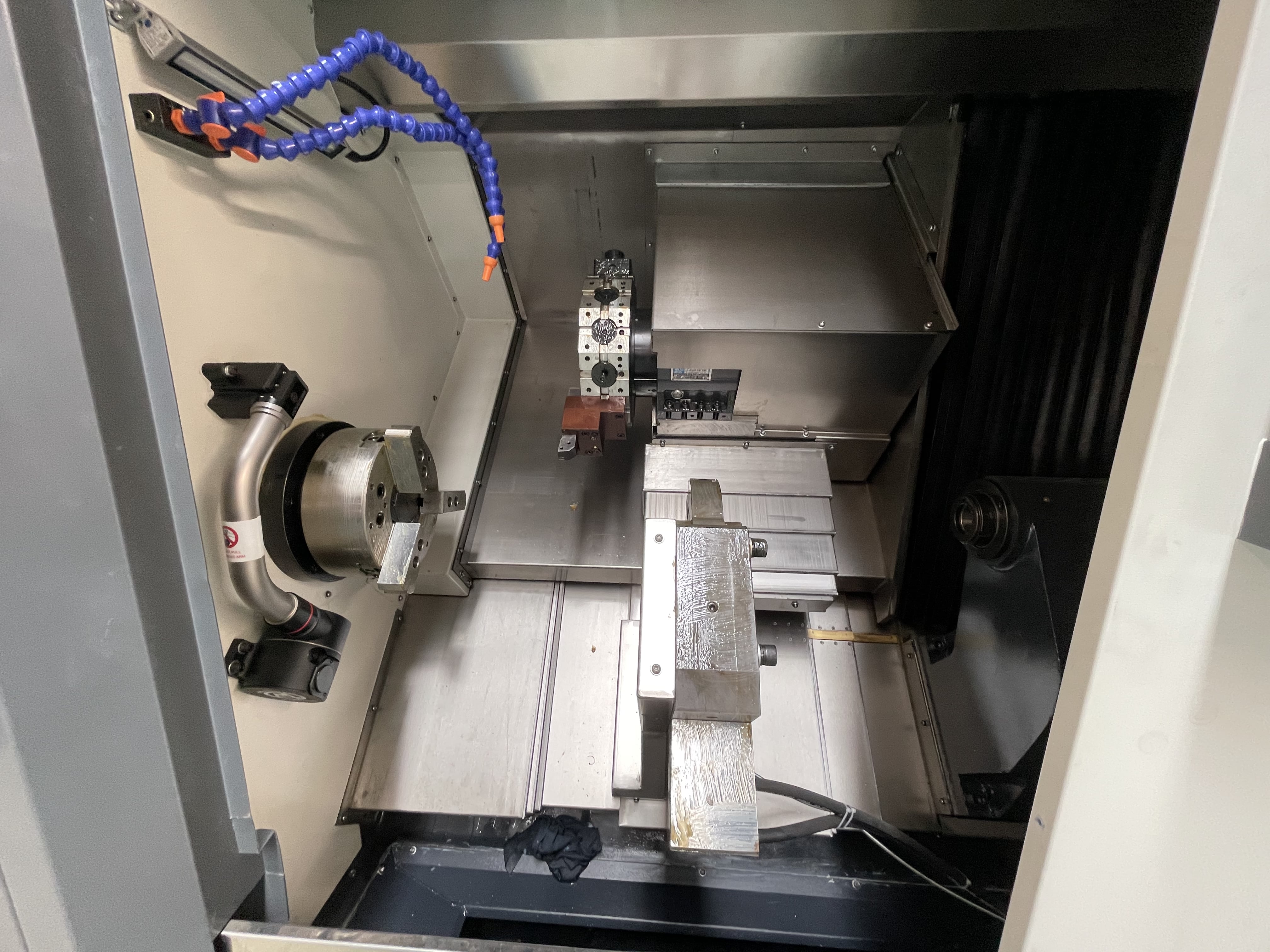

6. Gang type tool post
7. Lathe machine mechanical high-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.
8. Use advanced centralized lubrication system uses
9. Machine with full protection design,waterproof debris reliable, easy maintenance.
The Main Technical Parameters
| Model | Unit | TCK46A |
| Maximum turning diameter of bed | mm | Φ460 |
| Maximum turning diameter of cross slide | mm | Φ170 |
| Maximum processing length | mm | 350 |
| Maximum machining diameter (disk type) | mm | Φ400 |
| X axis maximum stroke | mm | 240 |
| Z axis maximum stroke | mm | 400 |
| Spindle speed | rpm | 3500rpm |
| Spindle through hole | mm | Φ56 |
| Spindle motor power | KW | 7.5/11 |
| Tool body size | mm | 2525 |
| Sleeve stroke | mm | 80 |
| Maximum stroke of tailstock | mm | 200 |
| Total power capacity | KVA | 18 |
| Dimensions (length × width × height) | mm | 2500*1700*1890 |
| Total Weight | KG | 2600 |
ALTCK46A Slant bed and linear guide way CNC lathe test long shaft work piece.
1.CNC Lathe machine guide are accurately grated,
which has good wear resistance and high precision.
2.Lathe CNC metal the spindle adopts single spindle frequency shift, two axes and two gear variable speed.
3.Mini lathe CNC is equipped with an automatic lubrication system, thus making it possible to minimize the thermal deformation
4.Horizontal CNC lathe machine effectively and assure good machining accuracy.
CNC lathe machine metal tool, it is especially suitable for high-efficiency, large-scale, and high-precision machining of rotating body parts in industries such as automobiles, motors, bearings, and hydraulics.
