ALCK6140x1000
ALLES CNC
| Specifications | Unit | ALCK6140X1000 |
| Max swing over bed | mm | Φ400 |
| Maximum turning diameter on the tool post | mm | 220 |
| Maximum workpiece length between two centers | mm | 1000 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite) | r/min | 80-2200 |
Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool | mm | 2350×1400×1800 |
| Net weight | kg | 1550/1650 |

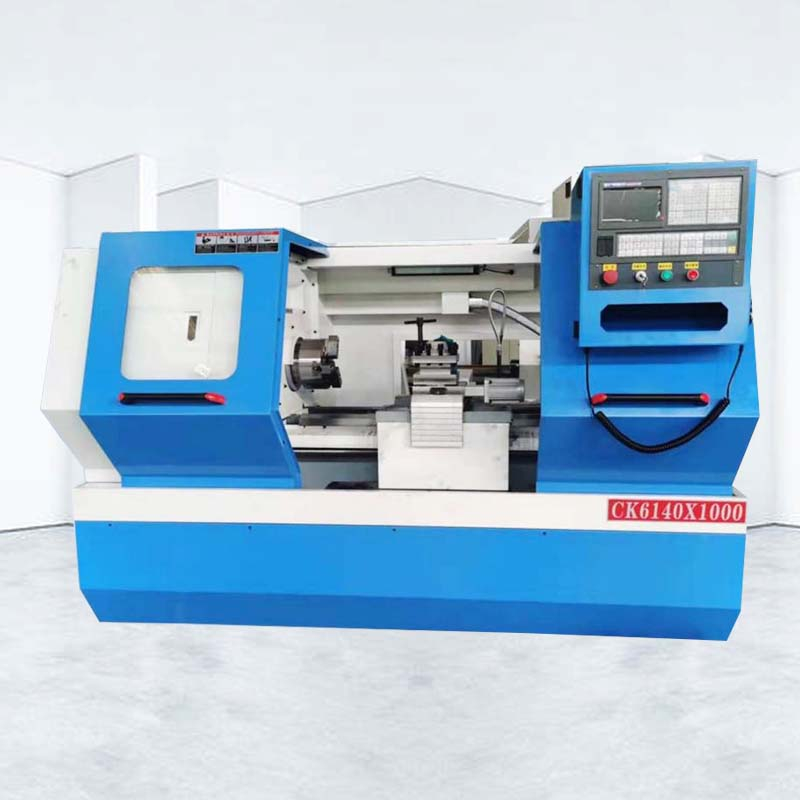

ALCK6140x1000 Flat Bed CNC Mini Lathe Machine is widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. Flat Bed CNC Mini Lathe Turning Machine is equipped with Four position electric turret. The chuck is a standard configuration manual chuck, spring chuck, hydraulic chuck, automatic feeding device, and gang tool are all optional configurations.
ALLES CNC has its own horizontal CNC lathe factory. The cnc lathe factory has more than 100 parts in the semi-finished area, and more than 30 finished products in the assembly area and finished product area.
The R&D team of ALLES cnc metal lathe factory is very large, with more than 100 engineers and a sales team of more than 20 people. At least 10 engineers will provide 24-hour online services.
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs；
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE
1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
Q:What is the strength of your factory?
A:The scale of ALLES CNC is very large. The processing workshop is equipped with about 100 machines for processing all parts of the machine, including the spindle, flange parts and machine bed. These machines include 38 lathes, 10 VMC, 20 horizontal boring machines, 6 large gantry milling machines and other boring machines, grinders, planers, etc.
Q:Are you a manufacturer?
A:Yes, we are a manufacturer of CNC machine tools.We have been in the machinery industry 40 years. We have the world's leading production experience in fully automatic machinery.
Q:Do you have CE certification?
Yes, we have CE certification, machine quality is one year guaranteed.
