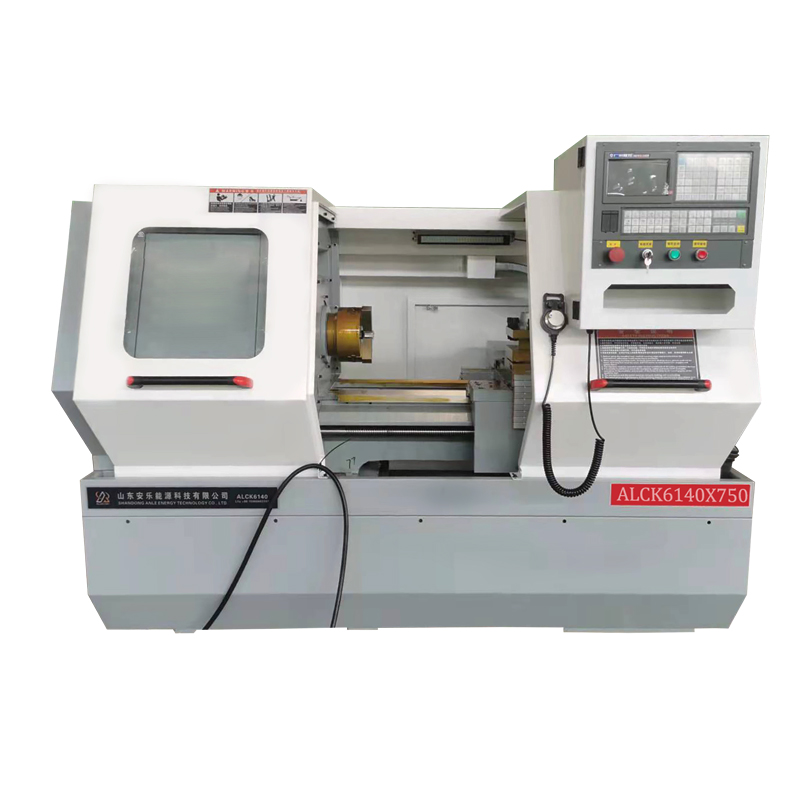

Super low price ALCK6140 CNC Lathe
Item | Unit | Specification | Remarks | |
Maximum turning diameter of bed | mm | Φ400 | ||
Center distance | mm | 1500 | ||
Maximum cutting diameter | mm | Φ400 | ||
Spindle hole diameter | mm | Φ52 | Ф52（Ordinary chuck) | |
Spindle speed range | r/min | 80-2200 | ||
X axis stroke | mm | 220 | ||
Z axis stroke | mm | 1500 | ||
Diameter of tailstock sleeve | mm | Φ65 | ||
Machine weight | kg | 2000 | ||
Middle height (from the bottom surface of the bed) | mm | 900 | ||
Length×width×height | mm | 2900×1400×1500 | ||
ALCK6140 CNC lathe, equipped with third-party drive, guide rail width 360,250 three-jaw manual self-centering chuck, four-station electric tool post, 5.5kw ordinary motor, manual tailstock, ALCK6140 CNC lathe delivery time 7-15 days
The ALCK6140 CNC machine is one of our economical CNC products. It is a CNC lathe with stepless speed change developed on the basis of generality. The machine has good accuracy and stability, strong rigidity, good thermal stability, and good accuracy retention. The excellent characteristics.
