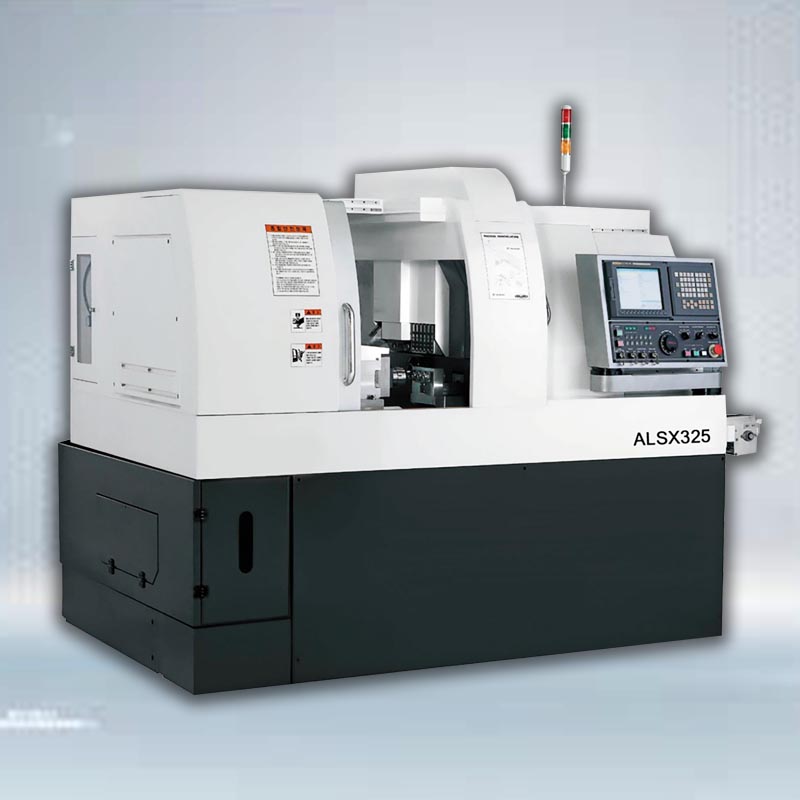

ALSX325
ALLES CNC
The Swiss Type Automatic CNC Lathe is designed to manufacture tiny parts for watches and pocket watches. The manufacture of these complex parts requires a high degree of flexibility and precision to execute. Swiss Type Automatic CNC Lathe has multi-axis machining capabilities. swiss type cnc lathe 7 to 13 axes. Therefore, it can process workpieces with complex designs.
| ltems | ALSM265 | ||
| mechanic | System | FANUC Oi | SYNTEC |
| Max.RPM | Main10,000min-1/Sub8000min-1 | Main6,000min-1/8,000min-1 Sub6,000min-1/8,000min-1 | |
| Max Tuning Diameter | Ф32mm | ||
| Main Spindle Stroke | 280mm | ||
| Tools | O.D Tools | 6X[口12x12] | |
| I.N Tools | 5X[ф25-ER16] | ||
| Cross Driven Tools(integration) | 4X[ER16] | ||
| Motors | Main | 5.5/7.5KW | 5.5KW |
| Cross | 0.55/1.1KW | 1KW | |
| Drive | 1KW | ||
| Coolant | 0.9KW | ||
Others | Central Height | 1,000mm | |
| Weight | 3800Kg | ||
| Thesize(L*W*H) | 2581X1563X1791mm | ||
1. Swiss type CNC lathe machining adopts Meehan stone resin sand cast iron, which has been treated with aging, has small deformation, good thermal stability and high rigidity
2. Swiss type CNC lathe machining adopts high-precision built-in electric spindle and ultra-high-precision angular contact ball bearings to achieve high rigidity and good precision maintenance of the spindle.

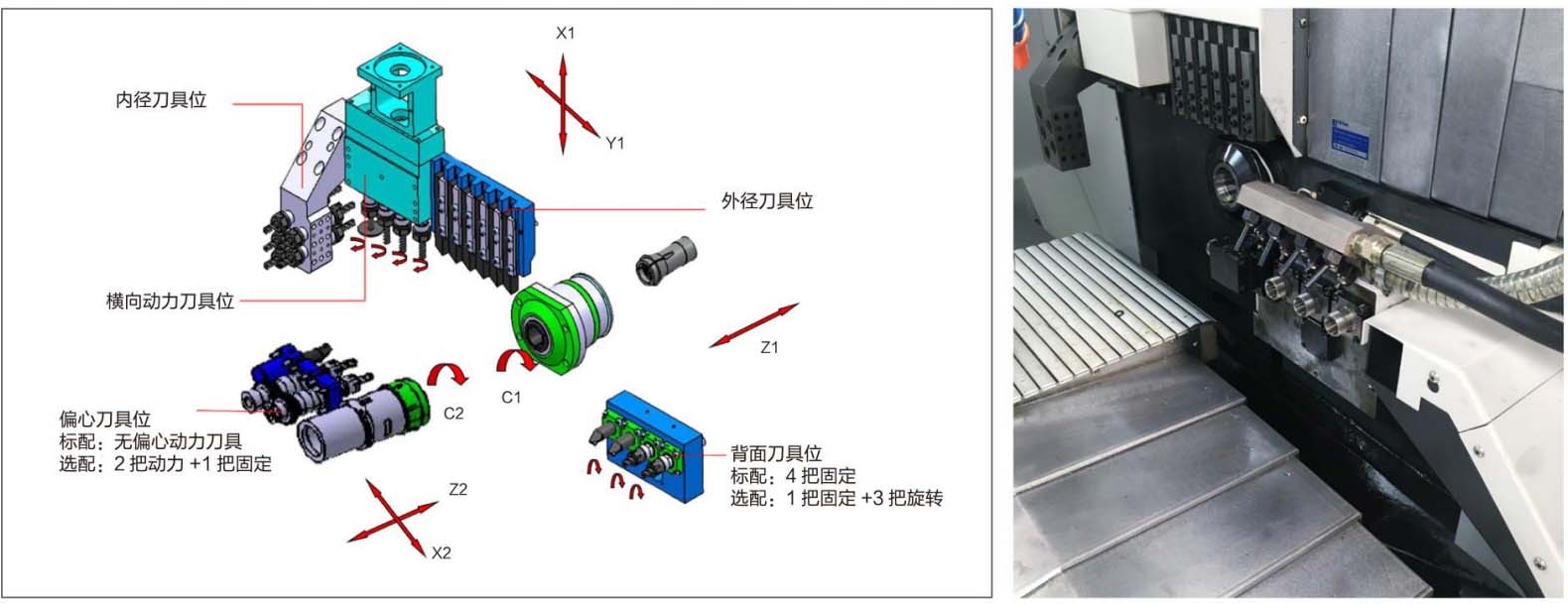

3. Swiss turning machine adopts gang tool, which can realize combined machining of turning/milling/drilling through side-mounted live tool and C-axis
4. Swiss turning machine can realize automatic processing after installation of automatic feeder
5. Swiss Type CNC Automatic Lathe Machine is suitable for machining complex, small, precise and slender shafts
The Swiss Type CNC Automatic Lathe Machine is most suitable for machining shaft parts with complex shapes, high precision requirements and mass production in industries such as automobiles, motor parts, medicine, micro shafts, electronic components, pneumatic tools, and clocks.
