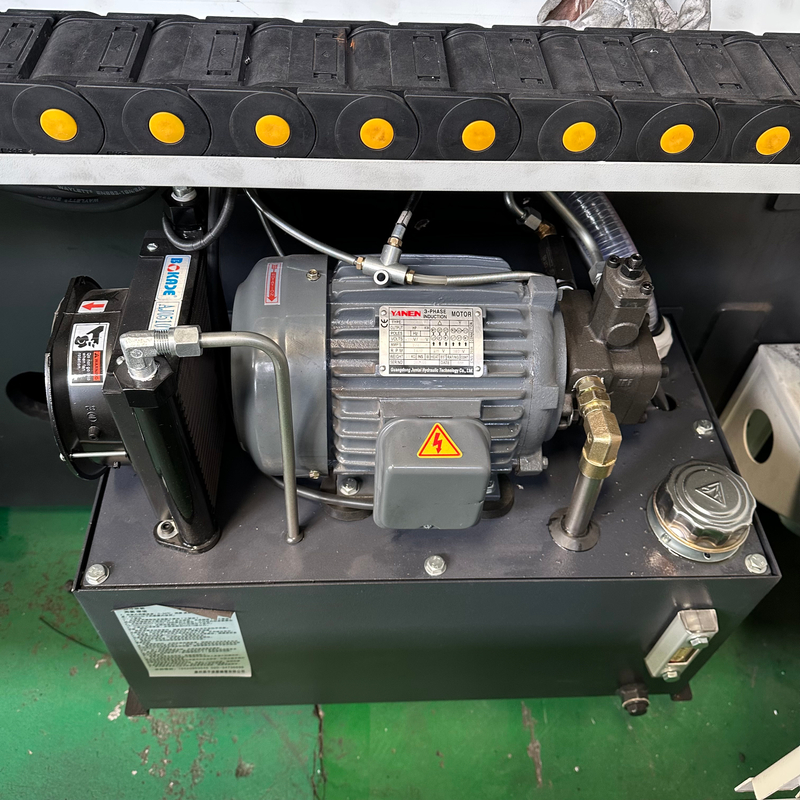

ALTCK52DY
ALLES CNC
Recently, the TCK52DY milling machine tool launched by Shandong Alles Energy Technology Co., Ltd. has attracted widespread attention. This high-precision equipment that integrates turning and milling has become a pioneer product in the field of intelligent manufacturing with its versatility and high efficiency. The following are the nine core functional highlights of the TCK52DY milling machine tool:
1. Integrated turning and milling processing
TCK52DY has both turning and milling functions. Users can complete turning processes such as external circle, end face, thread, groove cutting, as well as milling operations such as end face milling, drilling, tapping and side milling on the same device, which greatly reduces the process conversion between different devices and improves processing efficiency.
2. Y-axis eccentric processing
The device is equipped with a Y-axis travel and supports eccentric milling function, which can process complex curves and eccentric workpieces. This function makes processing more flexible and meets the production needs of a variety of difficult parts, especially suitable for industries such as aerospace and automotive manufacturing.
3. C-axis high-precision control
The spindle has a C-axis function, which can achieve multi-angle indexing and continuous rotation processing. The precise control of the C-axis enables TCK52DY to perform well in the fields of spiral groove processing and complex contour curve processing, greatly improving the application range of the equipment and the processing accuracy of the workpiece.
4. 12-station power turret
TCK52DY is equipped with a 12-station power turret, which can quickly switch tools and support the efficient completion of multiple processes. The power turret also has functions such as drilling and tapping, which further improves the productivity of compound processing.
5. Automatic tool change system
TCK52DY has an automatic tool change function, which can quickly switch multiple tools to achieve seamless connection between turning and milling processes, reduce manual operations, and improve production efficiency. This design is suitable for mass production and processing of complex parts.
6. High-power spindle system
The spindle power of TCK52DY is as high as 11-15kW, which can meet the needs of heavy-duty cutting, especially suitable for high-intensity processing of large-diameter workpieces. The high-power spindle enables the equipment to maintain processing stability while processing efficiently.
7. Large through-hole spindle design
The spindle aperture is Φ66mm, and the bar diameter is Φ52mm, which is suitable for the processing of long shaft parts. This design further expands the processing range of TCK52DY, which is suitable for the efficient manufacturing of complex workpieces such as pipes and shaft parts.
8. High-precision linear rail guides
TCK52DY uses high-precision linear rail guides to ensure high-precision movement of the X-axis, Z-axis and Y-axis. Combined with the application of high-quality lead screws, the equipment can realize the processing of precision parts, which is particularly suitable for the field of precision machinery manufacturing with high requirements.
9. Compact design and intelligent control
The equipment size is 3000*1850*1710mm, and the weight is 4000/4300kg. The design is compact and suitable for a variety of factory layouts. At the same time, TCK52DY supports intelligent control systems, and users can perform efficient programming and operation through the CNC interface, which simplifies the process flow and improves the level of automation.
Through these nine core functions, the TCK52DY milling machine tool not only meets the needs of modern manufacturing for high precision and high efficiency, but also can adapt to the multi-process processing of complex parts. As a technologically advanced composite equipment, it will play an important role in the field of intelligent manufacturing and promote the comprehensive upgrade of industrial production.
| Item mm | TCK52DY |
| Maximum Swing Diameter Over Bed | Φ650 |
| Maximum Machining Diameter Over Tool Post | Φ400 |
| Maximum Machining Length | -450/680 |
| Distance Between Centers | 600/830 |
| Spindle Motor Power | 11-15KW |
| Maximum Spindle Speed (rpm) | 4200 |
| Spindle Bore Diameter (mm) | Φ66 |
| Bar Passage Diameter (mm) | Φ52 |
| X/Z Axis Ball Screw Specifications | 3210/4010 |
| X-Axis Maximum Travel | 270 |
| X/Z Axis Linear Guide Specifications | 45/45 |
| Z-Axis Maximum Travel | 550/750 |
| Y-Axis Travel | Linear Guide Type ±45 |
| C-Axis | 360° |
| Tool Turret | Y-axis 12-position Power Turret |
| Sleeve Diameter | 80 |
| Sleeve Travel | 100 |
| Maximum Tailstock Travel | 480 |
| Tailstock Sleeve Taper | Morse #5 |
| Length * Width * Height (mm) | 3000*1850*1710 |
| Weight (Approx.) | 4000/4300kg |
