ALTCK700
ALLES CNC

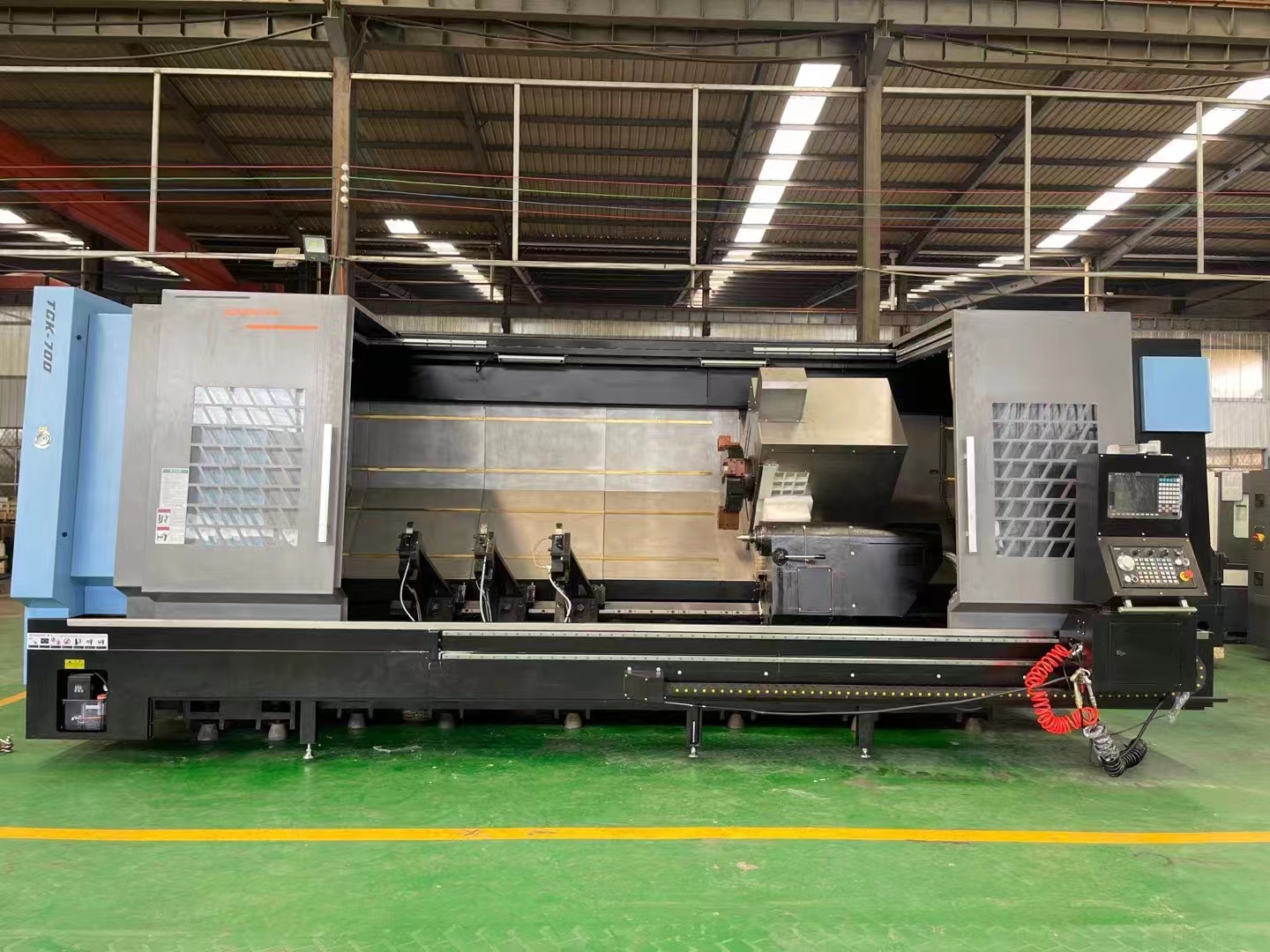

The TCK700 CNC lathe features a high-rigidity structure, powerful torque, multi-axis linkage, and intelligent cooling system, making it ideal for efficient precision machining and automated production.The TCK700 CNC lathe has the following main features:
1. High rigidity structure
The machine tool adopts an integral casting bed to ensure high strength and stability, reduce vibration during processing, and improve processing accuracy.
2. High torque spindle
Equipped with a high torque spindle motor, it can adapt to the processing needs of various materials, especially heavy cutting and high-precision processing tasks.
3. High-precision guide rail design
The ball screw and precision linear guide rail system reduce friction and provide excellent positioning accuracy and processing stability.
4. Multi-axis linkage
Supports multi-axis linkage processing, which can perform efficient processing of complex workpieces, especially for parts with complex geometric shapes.
5. Intelligent cooling system
Equipped with an automatic cooling system to effectively control processing heat, ensure the processing quality of the workpiece, and extend the service life of the tool.
6. Automatic loading and unloading function
Provides automatic loading and unloading devices, which are convenient for integration with automated production lines, suitable for mass production, and improve production efficiency.
7. Energy-saving and environmentally friendly design
Energy-saving motors and environmental protection design are used to reduce operating energy consumption, while reducing noise and dust pollution.
8. Multifunctional application
Suitable for a variety of processes such as turning, drilling, milling, etc., capable of processing workpieces of complex shapes, with a wide range of applications.
9. Efficient CNC system
Equipped with advanced CNC system, easy programming, rich functions, and support precision processing of a variety of complex workpieces.
10. Humanized operation interface
The operation panel is simple in design and easy to operate, suitable for all types of operators to quickly get started.
These features make the TCK700 CNC lathe an ideal choice for complex parts processing in industries such as aviation, automobiles, and molds.
| Technical specifications | Unit | TCK700 | |
| Processing range | Maximum rotation diameter on bed | mm | Φ780 |
| Maximum rotation diameter on saddle | mm | Φ500 | |
| Recommended turning diameter | mm | Φ650 | |
| Center distance | mm | 1100-1600-2100-3100 | |
| Chuck clamping processing length | mm | 900/1400/1900/2900 | |
| Spindle | Spindle head type | mm | A2-8 |
| Spindle through hole diameter | mm | 88 | |
| Bar diameter | mm | 75 | |
| Spindle speed | r/min | 3000 | |
| Main motor rated output | Kw | 15-20KW | |
| Spindle maximum output torque | NM | 708NM | |
| Clamp | Hydraulic chuck | inch | 12/15/18/21 |
| Saddle | Tilt angle | DEG | 45 ° |
| Movement distance X | mm | 350+20 | |
| Rapid moving speed X/Z | m/min | 16/24 | |
| Servo motor X/Y/Z | KW | 3/3/3(4) | |
| Turret | Number of tool positions | / | 12 stations |
| Tool size (turning / Boring) | mm | 32×32/Φ32(40) | |
| Overall dimensions X1000 | 45000X2300X2550mm | Net weight/gross weight | 7000/7500KG |
