Torno CNC metal ALCK0640 mini CNC lathe machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.
| Quantity: | |
|---|---|
ALCK0640
ALLES CNC
Torno CNC metal ALCK0640 mini CNC lathe with fanuc controller using the GSK controller system to realize the Two - axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread.
Item | Unit | ALCK0640 |
Max swing over bed | mm | Φ250 |
X-axis motor torque | 4Nm | |
Z-axis motor torque | 4Nm | |
Maximum swing over slide | mm | Φ120 |
Spindle hole diameter | mm | Φ48 |
Tool post form | Row tool | |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 3000 |
X/Z direction fast moving speed | m/min | 6/8 |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Machine weight | kg | 800 |
Dimensions (length × width × height) | mm | 1620×1340×1680mm |
CNC lathe ALCK0640 is widely used in the processing of electrical appliances, automobiles, motorcycle parts, hardware tools, motor valves, plumbing pipes, meters, bearings and other parts.

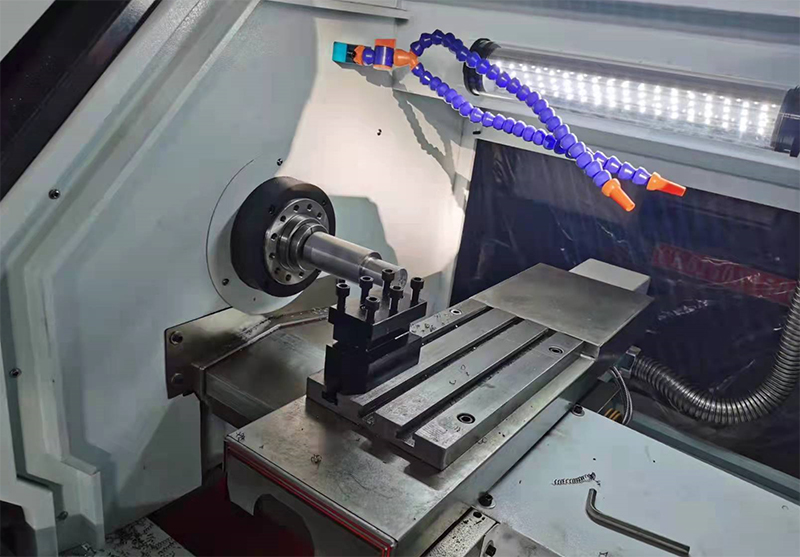

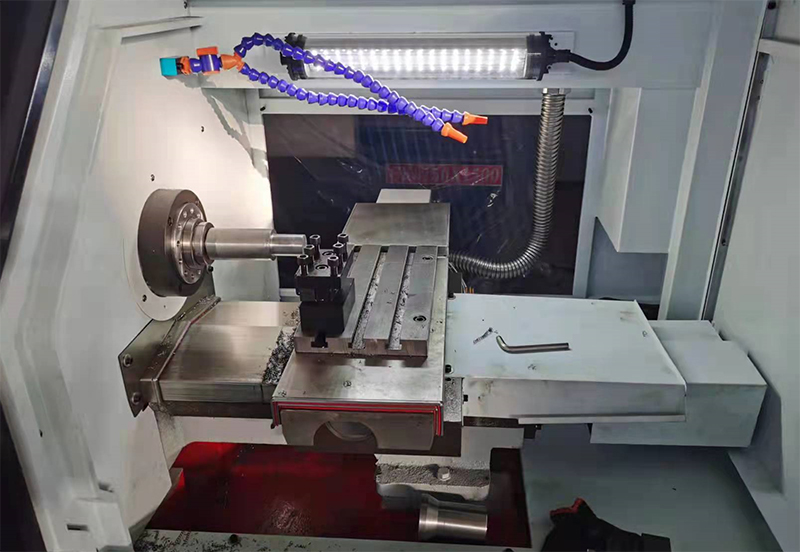

The bed is made of high-rigidity cast iron with an integral casting structure, which is 30% more rigid and stable than the integral bed foot structure. It is molded with resin sand and has been treated with aging. High-precision and high-strength ball screws are used for feed in X and Z directions;high-efficiency arranging tools are used as standard, and the tool change efficiency is high. Four-station CNC vertical electric tool holders are optional, with high precision and stable rotation , No lifting action is simple and other features.
Torno CNC metal ALCK0640 mini CNC lathe with fanuc controller using the GSK controller system to realize the Two - axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread.
Item | Unit | ALCK0640 |
Max swing over bed | mm | Φ250 |
X-axis motor torque | 4Nm | |
Z-axis motor torque | 4Nm | |
Maximum swing over slide | mm | Φ120 |
Spindle hole diameter | mm | Φ48 |
Tool post form | Row tool | |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 3000 |
X/Z direction fast moving speed | m/min | 6/8 |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Machine weight | kg | 800 |
Dimensions (length × width × height) | mm | 1620×1340×1680mm |
CNC lathe ALCK0640 is widely used in the processing of electrical appliances, automobiles, motorcycle parts, hardware tools, motor valves, plumbing pipes, meters, bearings and other parts.
The bed is made of high-rigidity cast iron with an integral casting structure, which is 30% more rigid and stable than the integral bed foot structure. It is molded with resin sand and has been treated with aging. High-precision and high-strength ball screws are used for feed in X and Z directions;high-efficiency arranging tools are used as standard, and the tool change efficiency is high. Four-station CNC vertical electric tool holders are optional, with high precision and stable rotation , No lifting action is simple and other features.
