ALCK6180X2000
ALLES CNC

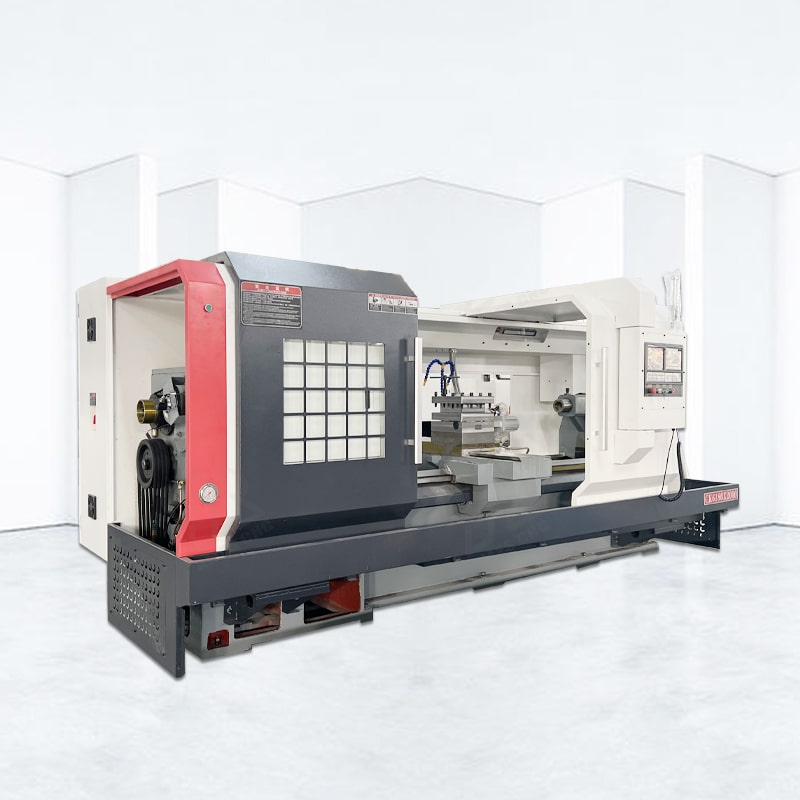

CNC lathe machine ALCK6180X2000
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | Φ440 | ||
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Tailstock | Spindle hole diameter | mm | Φ105 |
| Sleeve diameter/stroke | mm | Φ100/250 | |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 5200 | |
| Machine size: length×width×height | mm | 4400/1900/2000 |
1-cnc lathe machine Longitudinal and transverse feeds are realized by ball screws driven by servo motors.
2-ALLES CNC can choose vertical 4-station or horizontal 6, 8-station tool post. The knife holder is located on the precision bevel gear, and the repeat positioning accuracy is high.
3-Flat bed CNC lathe collets and tail stocks are available oil hydraulic or manual or pneumatic.
4. The spindle system has good rigidity and high precision.
5. The surface of automatic CNC lathe machine is supersonic quenched and precision ground, with long service life
Automatic CNC lathe machine Metal mold, injection mold, precision machinery, electronic machinery, electric motor, automobile and motorcycle industry, bicycle industry, medical equipment and electronic equipment and other industrial fields
