| Quantity: | |
|---|---|
ALVMC850
ALLES CNC

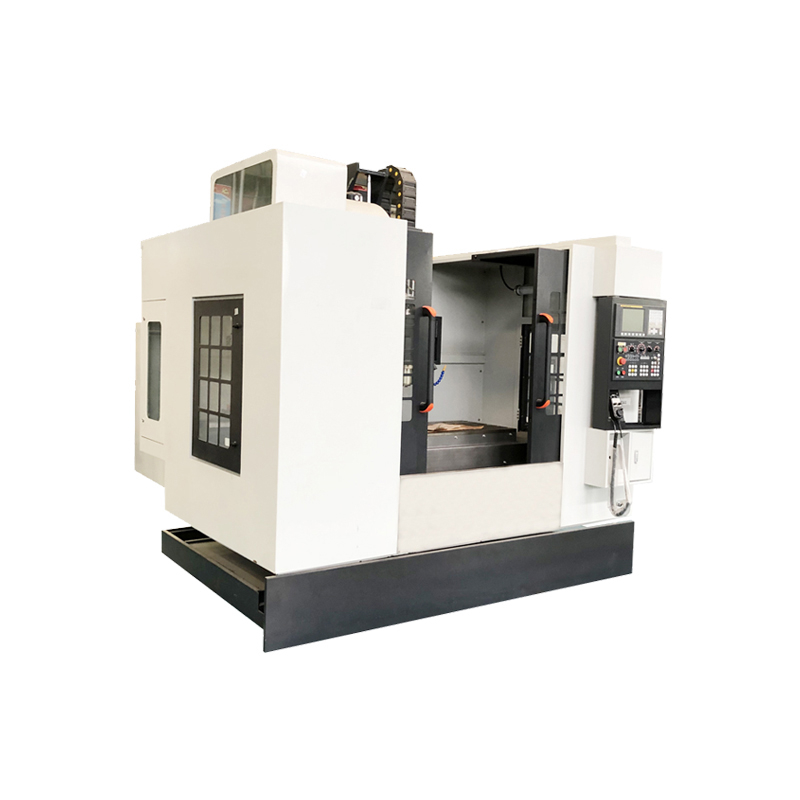

Vertical CNC Milling Machine milling is a processing method that removes material by cutting metal with a high-speed rotating tool. The vertical machining center (Vertical CNC Milling Machine) is a machine tool that realizes milling through the structure of the vertical layout of the spindle. Due to the vertical arrangement of the spindle, the tool moves up and down along the spindle direction, and moves along the top of the workpiece in the horizontal direction.
Technology Parameter
Specifications | Uni | ALVMC850 |
| Table size | mm | 1050×500 (1000×530 ） |
Table maximum load | kg | 600 |
X/Y/Z axis travel | mm | 800×500×600 |
Highest spindle speed | r/min | 8000 |
Repeat positioning accuracy | mm | ±0.004 |
Machine size (L×W×H) | mm | 2700×2400×2700 |
Net. weight (about) | kg | 5700 |
Vertical Machining Center Advantages
Vertical machine center has comprehensive high performance
CNC milling machine has compact structure and high productivity
Advanced and high rigidity cnc machine center
The vertical cnc milling machine has unparalleled high speed-Spindle speed range can reach 4000r/min
The vertical machine center is the ideal choice for mass production.
The compact structure of the cnc milling machine bed and the high-speed processing capability make the machine have first-class performance in mass production
vertical cnc machine center can process pump body, motor housing, water pump, connecting rod, etc.
Parts
CNC Control System
Standard:KND,
Optional: siemens, fanuc, syntec, mitsubishi and others.
Can be equipped with 24 knives
Standard with spindle unit.
Speed 8000rpm
Factory Display
Workpiece Display
ALTCK50A Series Of After Sales
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs；
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE
1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
