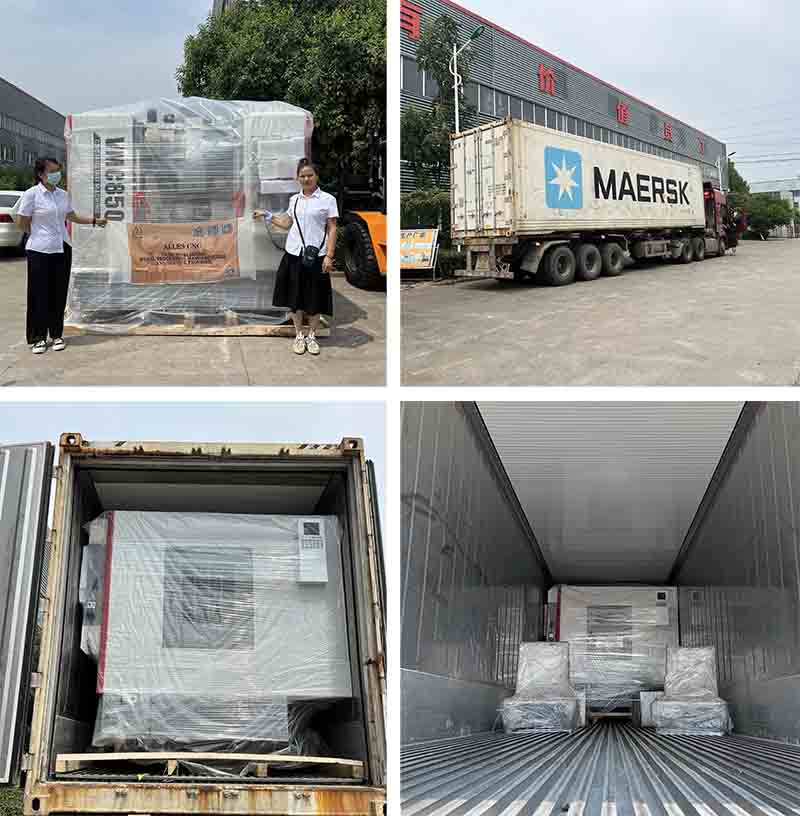

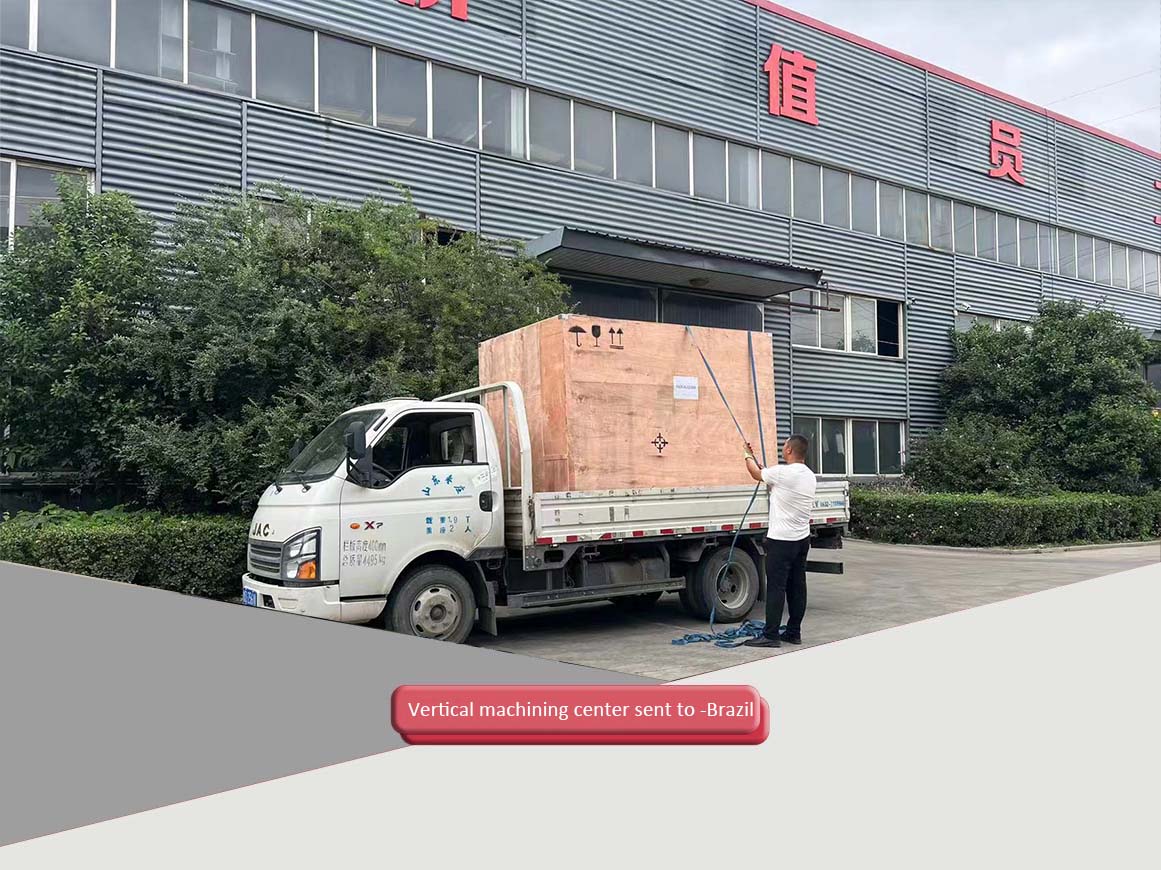

Brazil customers customized Vertical machine center equipment. Vertical machine center is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. Vertical machine center is widely used in the production of auto parts, medical equipment and Various injection molds, blow molds, die-casting molds, automotive LED molds, toy molds, precision molds, etc.
The vertical machining center adopts the finite element analysis software (Ansys) to optimize the design, which makes the structural design of the vertical machining center more reasonable, and the rigidity, precision retention rate and reliability of the vertical machining center tend to be perfect. The bed, worktable, column and milling head are all made of high-strength cast iron. After secondary tempering and aging treatment, the structure of the reinforcing rib is optimized, so that the machine performance is more in line with the requirements of processing characteristics and stability.
1. The guide rail of the bed adopts a large-span design, and the column adopts A-type structure design, so that the machine has excellent strength, rigidity and thermal stability.
2. High-performance spindle unit imported from Taiwan, with a speed of 10000rpm, can be equipped with a spindle oil cooling device to control the temperature rise of the spindle and improve the cutting accuracy.
3. The three feed axes are supported by linear roller guide rails imported from Taiwan to ensure the positioning accuracy of the three axes.
4. Both ends of the ball screw are pre-stretched, which increases the rigidity of the transmission and eliminates the thermal deformation caused by rapid movement in advance.
5. The whole machine adopts splash-proof sheet metal full protection design, which is beautiful and elegant to ensure the personal safety of the operator.
