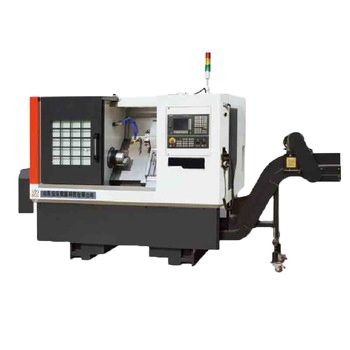

Slant bed CNC lathe is widely used in heavy turning, and its common use is to process workpieces such as complex geometries, short shafts, and discs. In addition, it can also process various metric or imperial internal and external threads.
| Quantity: | |
|---|---|
ALTCK6340
ALLES CNC
Technology Parameter
| Specifications | Unit | ALTCK6340 |
| Max. swing over bed | mm | Φ320 |
| Swing over cross slide | mm | Φ110 |
| Max. processing length | mm | 250 |
| X/Z axis travel | mm | 300/250 |
| Machine dimension(L×W×H) | mm | 1920×1350×1700 |
| Net. weight(about) | kg | 2600 |
CNC Lathe Machining
Parts
CNC Control System
Standard:GSK,
Optional:siemens,fanuc,syntec,mitsubishi and others.
Hydraulic Chuck
Standard with hydraulic chuck
Electric Tool Post/turret
Standard:4 PCS Gang type tool post,
Optional:8/12station hydraulic turret.
Spindle Unit
Standard with spindle unit.
Speed 3500rpm
Factory Display
Workpiece Display
ALLES CNC Machine is used to manufacture thousands of different components every day, including batch applications, small batches and prototype work. automatic horizontal slant bed cnc lathe is widely used in sanitary ware, valves, electrical appliances, meters, automobiles, motorcycles, bearings, etc.
ALTCK Series CNC Lathe Of After Sales
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs；
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE
1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
